Brand Name : Xingliaoyuan
Model Number : 2835-SMD-001
Certification : CE.FCC
Place of Origin : China
MOQ : 10
Price : 2.9USD/K pcs
Payment Terms : Western Union, L/C, D/A, D/P, T/T
Supply Ability : 100000000 Piece/Pieces per Month
Packaging Details : 4000 Pcs per Roll (D178 mm * 9 mm) 30 Rolls per Carton (353 mm * 254 mm * 256 mm)
Type : 2835 SMD LED
Luminous Flux(lm) : 26 - 28 LM
Verification : LM80
Power : 0.2 W
Warranty : 3 Years
Operating Tem : -40 - 85
Forward Current(mA) : 30-150 mA
Viewing Angle(°) : 120 Degree
Color Tem : 2700 - 6500k
Luminous Intensity : 400-3200mcd
Voltage(V) : 3V 6V 9V 18V
Lifespan : 50000 Hours
Color : Cool/Natural/Warm White
Application : LED Strip, LED Module, LED Tube...
Factory Price White LED Beads 2835 SMD LED Chip 2835 White Lighting SMD LED Diode
2835 SMD LED Parameter:
Color | Color Temperature (k) | Luminous Intensity (lm) | Viewing Angle 50% | Forward Current (mA) | Forward voltage (V) | Power (W) | Packing |
Cold White | 9000K- | 22-26lm | 120° | 60mA | 2.8-3.2V | 0.25W | 4K/Roll |
Warm White | 2500-3500K | 22-26lm | 120° | 60mA | 2.8-3.2V | 0.25W | 4K/Roll |
White | 6000-7000k | 22-26lm | 120° | 60mA | 2.8-3.2V | 0.25W | 4K/Roll |
![]() |

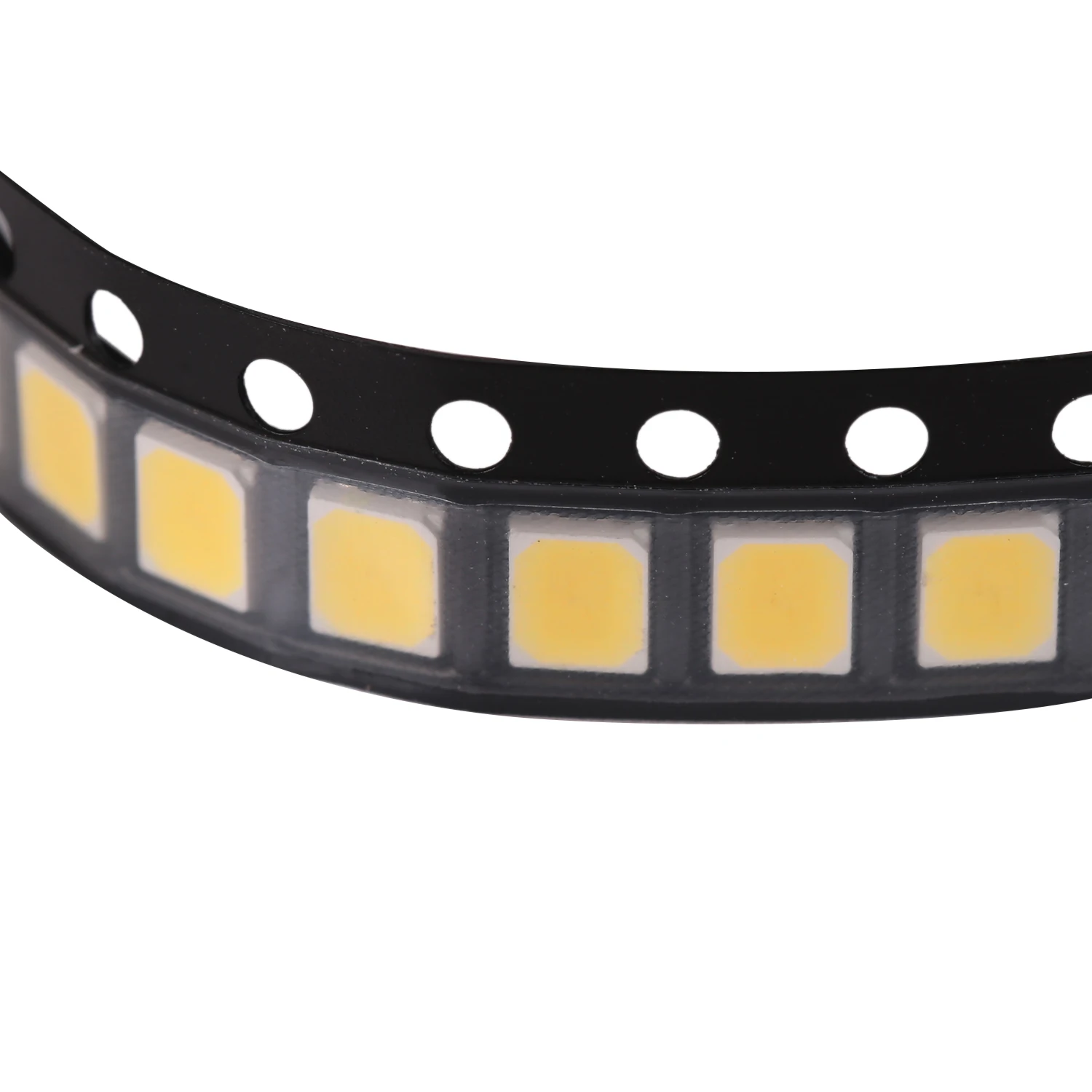

Factory Direct Price Cold White 9000k LED Beads 2835 SMD LED Chip 2835 White Lighting SMD LED Diode Images |
